STARTRC Battery Charging Hub
for DJI Air 3 Series
Product Description
The STARTRC Two-way Battery Charging Hub is tailored for DJI Air 3 series batteries, featuring advanced auto-detection technology to intelligently charge two batteries sequentially. Equipped with four modes—Full Charge, Storage, Collection, and Discharge—it ensures reliable power for outdoor adventures and long flights, making your aerial journeys worry-free.
Charging Hub Function Modes
Four versatile modes—Full Charge, Storage, Energy Transfer, and Discharge—enhance functionality, with built-in safety protections and dual-charger compatibility for efficient and secure battery management.
Full Charge Mode
- Function: Charges the battery to 100% for immediate use.
LED Indicator: Green LED breathing during charging.
Switching Method: Press and hold the button for 3 seconds to toggle with Storage Mode.
When to Use: When you need a fully charged battery quickly.
Precautions: Not recommended for long-term storage. Ensure the battery is properly seated.
Storage Mode
- Function: Keeps the battery at 60% for optimal long-term storage.
LED Indicator: Yellow LED steady on during charging.
Switching Method: Press and hold the button for 3 seconds to toggle with Full Charge Mode.
When to Use: For extended battery storage.
Precautions: Ideal for long-term storage, not for regular use. Check charge level periodically.
Power Transfer Mode
- Function: Transfers power from a higher-capacity battery to a lower one (both batteries must be inserted).
LED Indicator: Green LED breathing during power transfer.
Switching Method: Press and hold the button for 3 seconds without external power.
When to Use: When transferring power between batteries to optimize charge.
Precautions: Stops if any of the following occur: high battery fully charged, low battery under 5%, external power is connected, Type-C device connected, batteries removed/swapped, or temperature is abnormal. Ensure proper battery insertion.
Discharge Mode (Power Bank Function)
- Function: Uses the battery as a power bank for external devices.
LED Indicator: Yellow LED breathing during discharging.
Switching Method: Connect any Type-C device to activate.
When to Use: When using the battery to power external devices on the go.
Precautions: Stops when the battery reaches 10%. Only connect Type-C devices to avoid damage.
More Function and Precautions
Battery Level Display
Function: Shows the current battery charge.
Switching Method: Press the button once (without external power) to display the charge level.
When to Use: To check the battery charge before deciding on the mode.
Precautions: This feature only displays the battery status and doesn’t affect charging or discharging.
Recommended Chargers:
- PD 100W or PD 65W chargers are recommended for optimal charging efficiency.
- QC protocol chargers are supported but charge at a slower rate.
Charging Method:
- Dual 100W Chargers (C1 & C2 Ports): Both batteries charge simultaneously.
- Dual 65W Chargers (C1 & C2 Ports): Both batteries charge simultaneously.
- Chargers Below 65W or Different Power Outputs: The hub prioritizes charging the battery with the highest charge level first.
Safety Precautions
- Activate uncharged batteries using the original charging hub or drone.
- Use the charging hub on a stable, ventilated surface; avoid covering it to prevent overheating.
- Do not charge damaged batteries to avoid short circuits or fire hazards.
- Indoor use only; keep away from moisture.
- Do not disassemble or repair the hub yourself; contact authorized service centers for issues.
- Store batteries in a cool, dry place and recharge periodically to maintain performance.
- Charging and discharging cannot occur simultaneously. Please do not perform both operations at the same time.
Specification
| Product Name | STARTRC Two-Way Charging Hub for DJI Air 3 Series |
| Model No. | 1125351 |
| Brand | STARTRC |
| Compatibility | For DJI Air 3S; DJI Air 3 |
| Material | ABS & PC |
| Color | Gray |

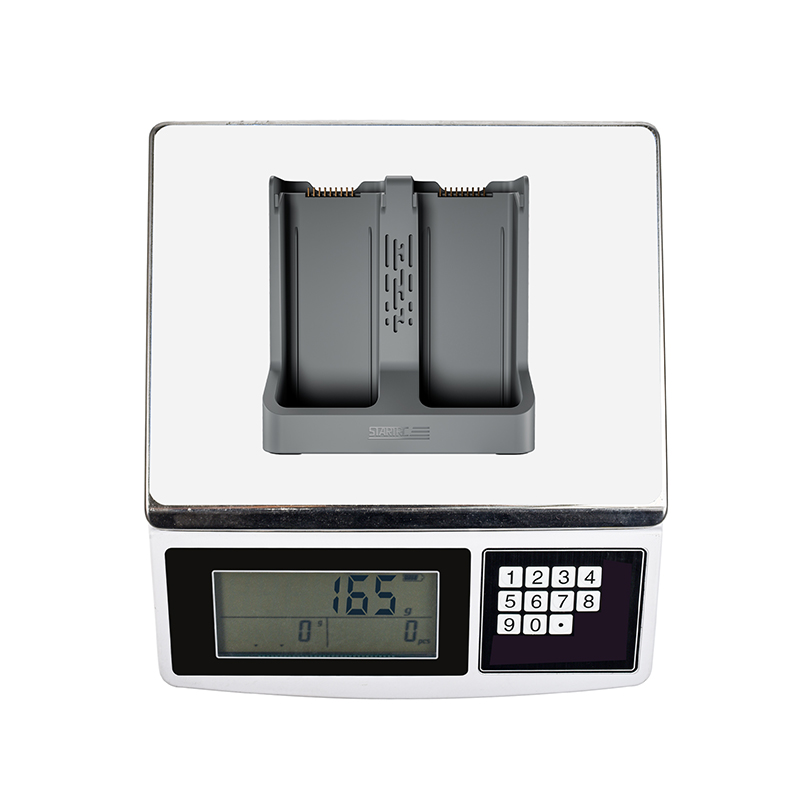

| N.W. | 165g |
| G.W. | 260g |

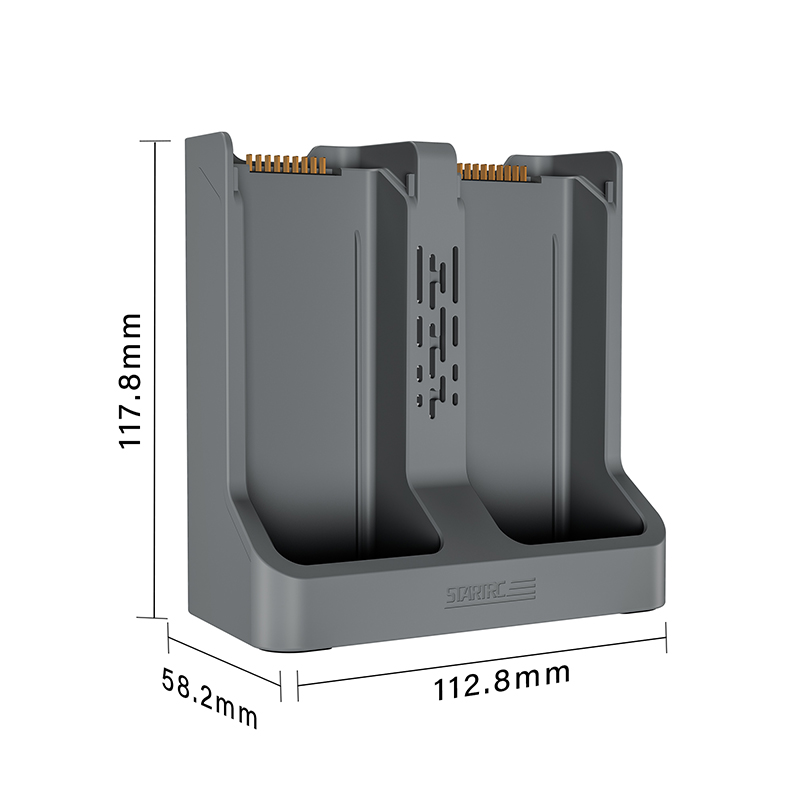

| Product Size | 11.8*11.3*5.8cm |

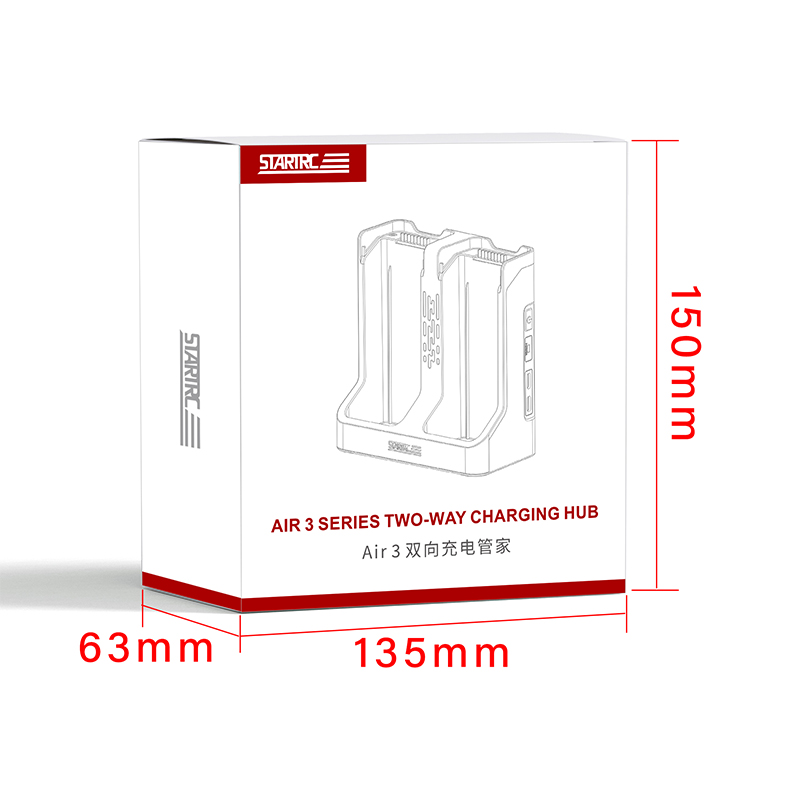

| Packaging Size | 15*13.5*6.2cm |
| Charging Method | Type-C |
| Recommended Chargers | PD 100W or PD 65W chargers |
| Type-C Output | C1 + C2 = PD 63W (Max) |
| Type-C Input | C1 Input: 80W (Max); C2 Input: 80W (Max) |
| Charging Time | Approximately 70 minutes |
| Charging Environment Temperature | 0°C to 45°C |
| Operating Temperature | -10°C to 45°C |
| Battery | No |
| Certificate | FCC; RoSH; CE |
| Product List | Charging Hub*1; Charging Cable(C to C)*1; Manual*1 |
FAQ
1
Can I charge and discharge simultaneously with the charging hub?
No, charging and discharging cannot occur at the same time. Please ensure only one function is active at a time.
2
How do I activate a new battery?
Unactivated batteries should be placed in the original charging case or drone to activate and charge them.
3
What should I do if the charging hub overheats?
Place the charging hub on a stable, well-ventilated surface and avoid covering it with any objects to ensure proper heat dissipation.
4
Can I charge damaged batteries?
No, do not charge batteries that are damaged, dented, or deformed, as they may cause short circuits or fires.
5
Can I use the charging hub outdoors?
The charging hub is designed for indoor use only. Keep it away from rain, snow, or any damp environments to avoid damage or malfunction.
6
What should I do if the charging hub needs repair?
Do not attempt to disassemble or repair the charging hub yourself. Please contact an authorized service center for repairs.
7
How should I store the batteries when not in use?
Store unused batteries in a cool, dry, and ventilated place, away from direct sunlight and high temperatures. It's recommended to charge them periodically to maintain battery health.
8
How do I switch between Full Charge Mode and Storage Mode?
Press and hold the function button for 3 seconds while the charging hub is powered on to toggle between Full Charge Mode and Storage Mode.
9
How do I activate Power Transfer Mode?
Ensure the charging hub is not connected to external power. Insert two batteries and press and hold the function button for 3 seconds to activate Power Transfer Mode.
10
How can I tell which mode is active?
Check the LED indicator:
Green Breathing: Full Charge Mode or Power Transfer Mode in progress.
Yellow Steady: Storage Mode is active.
Yellow Breathing: Discharge Mode (power bank function) is active.
11
Do I need to manually switch to Discharge Mode?
No, Discharge Mode is automatic. Simply connect an external device via the Type-C port, and the hub will enter Discharge Mode.
12
What happens if the mode switching button doesn’t respond?
Ensure there are no external power sources connected for modes like Power Transfer. If the problem continues, reset the charging hub or contact support.
